18.1. Create Model

A Transformer model is built upon two main components: an encoder and a decoder, alongside a linear layer and a softmax layer. See Fig.18-1.

Fig.18-1: Transformer Model Architecture

The encoder consists of:

Input modules: This includes embedding coding and positional encoding.
Encoder layers: A stacked series of identical “EncoderLayer” modules.

Similarly, the decoder consists of:

Output modules: These modules handle specific output tasks.
Decoder layers: A stacked series of identical “DecoderLayer” modules.

This section delves into the intricacies of the encoder, decoder, and how they work together to form the complete Transformer model.

Note

This implementation does not include a hyper-parameter for explicit sequence length limitation, because this is a toy program and sets the longest sentence in the received dataset to the maximum sequence length.

18.1.1. Encoder

18.1.1.1. EncoderLayer

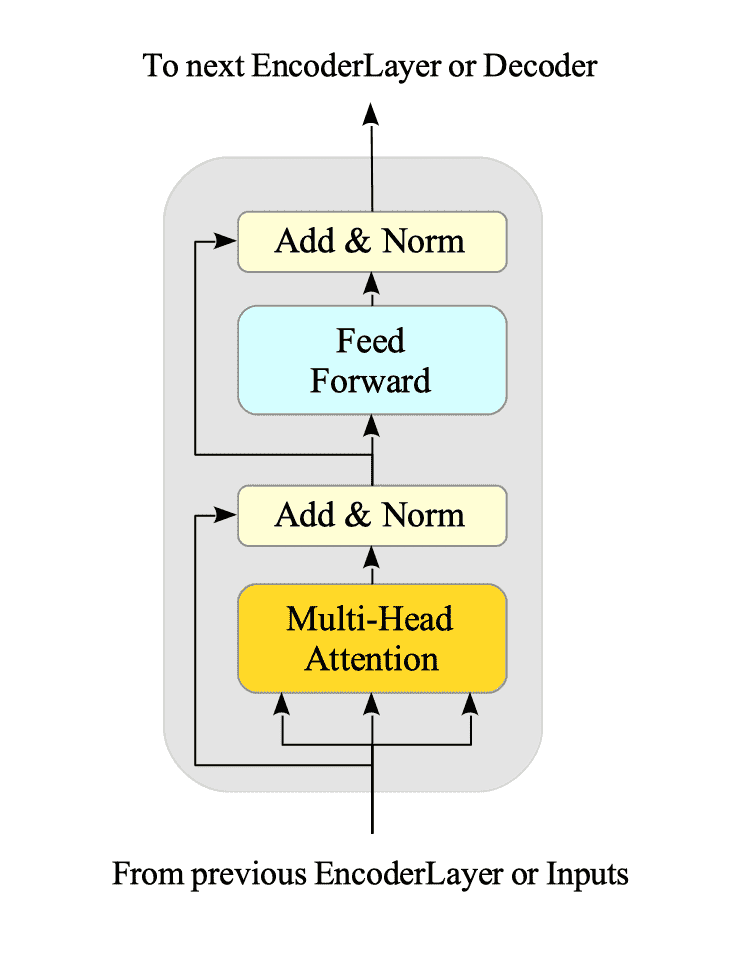

Figure 18-2 illustrates the EncoderLayer:

This layer combines three key mechanisms:

Multi-Head Attention explained in Section 17.3.
Pointwise Feed-Forward Network explained in Section 17.4.
Normalization layers.

Here’s the Python code implementing this layer:

class EncoderLayer(tf.keras.layers.Layer):
    def __init__(self, d_model, num_heads, d_ffn, rate=0.1):
        super(EncoderLayer, self).__init__()

        self.mha = MultiHeadAttention(d_model, num_heads)
        self.ffn = point_wise_feed_forward_network(d_model, d_ffn)

        self.layernorm1 = tf.keras.layers.LayerNormalization(epsilon=1e-6)
        self.layernorm2 = tf.keras.layers.LayerNormalization(epsilon=1e-6)

        self.dropout1 = tf.keras.layers.Dropout(rate)
        self.dropout2 = tf.keras.layers.Dropout(rate)

    def call(self, x, training, mask):
        attn_output, _ = self.mha(x, x, x, mask)
        attn_output = self.dropout1(attn_output, training=training)
        out1 = self.layernorm1(x + attn_output)

        ffn_output = self.ffn(out1)
        ffn_output = self.dropout2(ffn_output, training=training)
        out2 = self.layernorm2(out1 + ffn_output)

        return out2

Two dropout layers are used to prevent overfitting.

18.1.1.2. Encoder

The Encoder class builds upon the EncoderLayer by stacking multiple layers, along with word embedding and positional encoding modules. It outputs the final layer’s representation of the input sentence.

class Encoder(tf.keras.layers.Layer):
    def __init__(self, num_layers, d_model, num_heads, d_ffn, source_vocab_size, maximum_position_encoding, rate=0.1):
        super(Encoder, self).__init__()
        self.d_model = d_model
        self.num_layers = num_layers
        self.embedding = tf.keras.layers.Embedding(source_vocab_size, d_model)
        self.pos_encoding = positional_encoding(maximum_position_encoding, self.d_model)
        self.enc_layers = [
            EncoderLayer(d_model, num_heads, d_ffn, rate) for _ in range(num_layers)
        ]
        self.dropout = tf.keras.layers.Dropout(rate)

    def call(self, x, training, mask):
        attention_weights = {}

        seq_len = tf.shape(x)[1]
        x = self.embedding(x)
        x *= tf.math.sqrt(tf.cast(self.d_model, tf.float32))
        x += self.pos_encoding[:, :seq_len, :]
        x = self.dropout(x, training=training)
        for i in range(self.num_layers):
            x, attention_weight = self.enc_layers[i](x, training, mask)
            attention_weights["encoder_layer{}".format(i + 1)] = attention_weight

        return x, attention_weights

18.1.2. Decoder

18.1.2.1. DecoderLayer

Figure 18-3 illustrates the DecoderLayer:

This layer combines four key mechanisms.

Multi-Head Attention and Masked Multi-Head Attention.
Pointwise Feed-Forward Network.
Normalization layers.

Here’s the Python code implementing this layer:

class DecoderLayer(tf.keras.layers.Layer):
    def __init__(self, d_model, num_heads, d_ffn, rate=0.1):
        super(DecoderLayer, self).__init__()

        self.mha1 = MultiHeadAttention(d_model, num_heads)
        self.mha2 = MultiHeadAttention(d_model, num_heads)

        self.ffn = point_wise_feed_forward_network(d_model, d_ffn)

        self.layernorm1 = tf.keras.layers.LayerNormalization(epsilon=1e-6)
        self.layernorm2 = tf.keras.layers.LayerNormalization(epsilon=1e-6)
        self.layernorm3 = tf.keras.layers.LayerNormalization(epsilon=1e-6)

        self.dropout1 = tf.keras.layers.Dropout(rate)
        self.dropout2 = tf.keras.layers.Dropout(rate)
        self.dropout3 = tf.keras.layers.Dropout(rate)

    def call(self, x, enc_output, training, look_ahead_mask, padding_mask):
        attn1, attn_weights_block1 = self.mha1(x, x, x, look_ahead_mask)
        attn1 = self.dropout1(attn1, training=training)
        out1 = self.layernorm1(attn1 + x)

        attn2, attn_weights_block2 = self.mha2(enc_output, enc_output, out1, padding_mask)
        attn2 = self.dropout2(attn2, training=training)
        out2 = self.layernorm2(attn2 + out1)

        ffn_output = self.ffn(out2)
        ffn_output = self.dropout3(ffn_output, training=training)
        out3 = self.layernorm3(ffn_output + out2)

        return out3, attn_weights_block1, attn_weights_block2

18.1.2.2. Decoder

The Decoder class builds upon the DecoderLayer by stacking multiple layers, along with word embedding and positional encoding modules. It returns the output of the final DecoderLayer, which is passed to the Softmax Layer.

class Decoder(tf.keras.layers.Layer):
    def __init__(self, num_layers, d_model, num_heads, d_ffn, target_vocab_size, maximum_position_encoding, rate=0.1):
        super(Decoder, self).__init__()

        self.d_model = d_model
        self.num_layers = num_layers

        self.embedding = tf.keras.layers.Embedding(target_vocab_size, d_model)
        self.pos_encoding = positional_encoding(maximum_position_encoding, d_model)

        self.dec_layers = [DecoderLayer(d_model, num_heads, d_ffn, rate) for _ in range(num_layers)]
        self.dropout = tf.keras.layers.Dropout(rate)

    def call(self, x, enc_output, training, look_ahead_mask, padding_mask):
        seq_len = tf.shape(x)[1]
        attention_weights = {}

        x = self.embedding(x)
        x *= tf.math.sqrt(tf.cast(self.d_model, tf.float32))
        x += self.pos_encoding[:, :seq_len, :]

        x = self.dropout(x, training=training)

        for i in range(self.num_layers):
            x, block1, block2 = self.dec_layers[i](x, enc_output, training, look_ahead_mask, padding_mask)

            attention_weights["decoder_layer{}_block1".format(i + 1)] = block1
            attention_weights["decoder_layer{}_block2".format(i + 1)] = block2

        return x, attention_weights

18.1.3. Transformer model

The Transformer class consists of an encoder, a decoder, and a softmax layer.

class Transformer(tf.keras.Model):
    def __init__(self, num_layers, d_model, num_heads, d_ffn, source_vocab_size, target_vocab_size, pe_input, pe_target, rate=0.1):
        super(Transformer, self).__init__()

        self.encoder = Encoder(num_layers, d_model, num_heads, d_ffn, source_vocab_size, pe_input, rate)
        self.decoder = Decoder(num_layers, d_model, num_heads, d_ffn, target_vocab_size, pe_target, rate)
        self.final_layer = tf.keras.layers.Dense(target_vocab_size)

    def call(self, source_sentences, target_sentences, training, enc_padding_mask, look_ahead_mask, dec_padding_mask):
        enc_output, encoder_attention_weights = self.encoder(source_sentences, training, enc_padding_mask)
        dec_output, decoder_attention_weights = self.decoder(target_sentences, enc_output, training, look_ahead_mask, dec_padding_mask)

        final_output = self.final_layer(dec_output)

        return final_output, attention_weights
